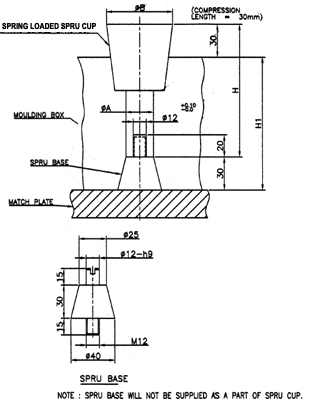

This is Pouring Cup used to provide Feeder holes in the Mould.The Pouring Cup is released from the Mould by Spring Loaded Mechanism. The specifications of the Pouring Cups will be depends on the height of the Moulding Box and the grade of the material to be poured.

• Material for Sprue Body : Mild Steel Or Cast Iron
• Material for Sprue Pin : Case Hardening Alloy Steel
• Hardness of the Sprue Pin : 40 To 45 HRC
